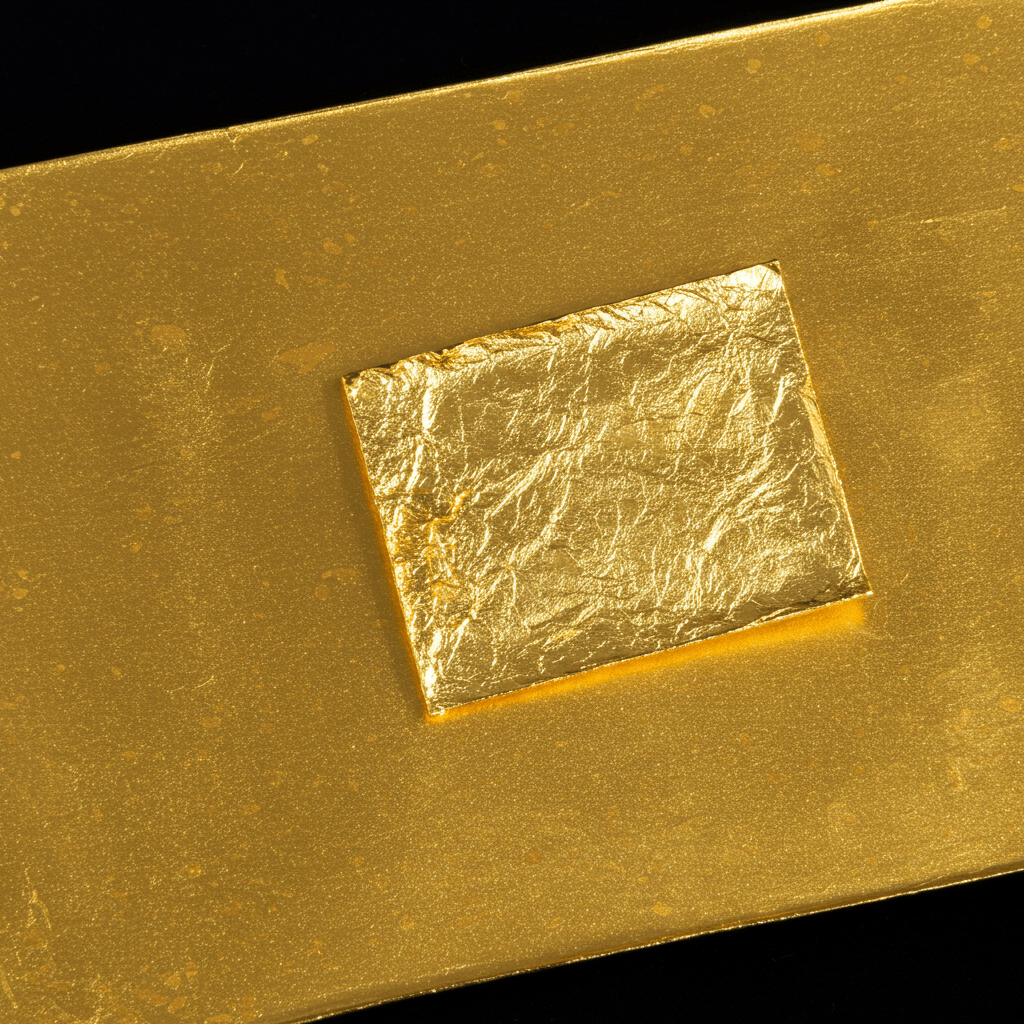

A new study has revealed the microscopic secrets behind the brilliant shimmer and remarkable thinness of Kanazawa gold leaf, a material so delicate it is measured in atoms. For centuries, artisans in Japan have hammered gold into sheets just 100 nanometers thick, about 1/1,000 the diameter of a human hair, using a traditional technique without understanding the precise physics at play. Researchers have now identified an unusual deformation mechanism within the gold’s crystal structure that is activated by this ancient process, explaining for the first time how the material can be made so thin without breaking while retaining its famous luster.
The investigation, led by a team at the Japan Advanced Institute of Science and Technology (JAIST), discovered that the room-temperature hammering process forces gold’s crystals to slip along planes not typically observed in the metal under such conditions. This rare phenomenon, known as a non-octahedral slip system, allows the gold to form a unique, highly uniform texture without requiring heat. The finding not only provides a scientific foundation for a craft recognized by UNESCO as an Intangible Cultural Heritage but also opens new avenues for developing advanced nanomaterials and ultrathin metallic films for modern technological applications.
A Legacy Forged in Gold
Kanazawa, the capital of Ishikawa Prefecture, is synonymous with gold leaf, producing more than 98% of all gold leaf in Japan. The craft, known as entsuke, has been passed down for over 400 years and is integral to Japanese culture, used to adorn temples, shrines, intricate artworks, and even food. The historic Kinkaku-ji temple in Kyoto and the Yomeimon Gate in Nikko are prominent examples of structures decorated with this brilliant material. The skill of Kanazawa’s artisans is so highly regarded that the craft was designated a UNESCO Intangible Cultural Heritage in 2020, celebrating the human ingenuity required to transform a small piece of gold alloy into a vast, shimmering sheet large enough to cover a tatami mat.
The traditional entsuke process is entirely manual and performed at room temperature. It involves sandwiching small squares of a gold alloy between sheets of special handmade Japanese paper, called washi. This stack is then subjected to intense and repeated hammering by a skilled artisan. The rhythmic beating gradually thins the gold, spreading it out into a uniform, translucent foil. While the process was perfected through centuries of trial and error, the underlying material science that prevented the gold from hardening and fracturing during this intense mechanical stress remained a mystery to scientists. Normally, metals subjected to such intense work at cold temperatures become brittle, but Kanazawa gold leaf remains pliable and brilliant.
Uncovering the Microscopic Secrets
To solve this puzzle, a research team led by Professor Yoshifumi Oshima at JAIST embarked on a detailed microstructural analysis of the gold leaf. The team, which included doctoral student Yuanzhe Xu and collaborators from the University of Osaka, sought to understand the deformation process at the crystal level. They investigated gold leaf at different stages of the hammering process: an intermediate thickness of 1 micrometer, known as Zumi foil, and the final 0.1-micrometer product (No. 4 gold leaf). Their goal was to map the evolution of the gold’s crystal orientation and structure to explain how it achieves its final, highly textured state.
Advanced Analytical Techniques
The researchers employed sophisticated imaging techniques to peer inside the material. They used electron backscatter diffraction (EBSD) to map the crystallographic orientation of the grains within the gold foil. This technique allowed them to see how the millions of tiny gold crystals aligned themselves in response to the hammering. To get an even closer look at the atomic-level structure and identify defects like dislocations, the team utilized transmission electron microscopy (TEM). Together, these methods provided a comprehensive picture of the material’s internal transformation, revealing a mechanism that defied conventional metallurgical expectations.
An Unexpected Deformation Mechanism
The team’s analysis yielded a surprising result. As the gold was hammered, its crystal lattice began to deform in an unusual way. In face-centered cubic metals like gold, deformation typically occurs along what are known as octahedral planes. However, the JAIST team found clear evidence that the intense pressure of the entsuke technique activated a much rarer mechanism: the non-octahedral {110}-<110> slip system. This type of slip is typically seen only at very high temperatures or under specific types of stress, such as rolling, not during room-temperature hammering. The activation of this secondary slip system allows the crystals to deform and rotate without generating significant internal stress or requiring a process of heating and cooling known as recrystallization.
The Hammer’s Precision
This finding explains how the artisans, through their finely tuned hammering, can achieve what advanced industrial processes often cannot. The repeated, multi-directional blows from the hammer guide the gold crystals to align in a specific orientation, known as a near-cube {001} texture. The activation of the non-octahedral slip system is the key that unlocks this transformation, allowing the crystals to accommodate the extreme strain and spread into a flawless, ultra-thin sheet. The process is a testament to the precision of the traditional technique, which manipulates the material’s atomic structure through purely mechanical means.
The Science of a Brilliant Texture
The unique crystalline structure forged by the hammering process is directly responsible for the gold leaf’s signature visual properties. The near-cube {001} texture means that the individual gold crystals are flattened and aligned in a very uniform, parallel arrangement. When light strikes this exceptionally smooth surface, it reflects coherently, with minimal scattering. This uniform reflection is what the human eye perceives as a brilliant, deep luster. The durability of the leaf, despite its thinness, is also a result of this highly organized crystal structure, which is free from the internal defects that would typically accumulate during such intense cold working.
Implications for Future Technologies
The discoveries from this research extend far beyond cultural preservation. By providing a scientific blueprint of the entsuke technique, the study offers valuable insights for materials science and nanotechnology, demonstrating how mechanical processes can be used to engineer materials with unique properties at the nanoscale.
Preserving Cultural Heritage
A scientific understanding of the deformation mechanism provides a concrete basis for preserving the entsuke tradition. It quantifies the results of the artisans’ skilled labor, ensuring that as new generations of craftspeople learn the technique, the critical parameters for producing high-quality gold leaf are understood. This knowledge can help safeguard the craft from modifications that might inadvertently compromise the material’s unique properties, ensuring its legacy continues.
Inspiring New Materials
Perhaps most exciting are the implications for creating new materials. The study demonstrates a method for producing highly textured, ultrathin metallic films without the need for high temperatures or complex vacuum deposition equipment. This low-energy, mechanical approach could inspire novel strategies for manufacturing advanced components for use in electronics, catalysis, and flexible devices. By learning from a 400-year-old tradition, scientists may develop next-generation nanomaterials that are both high-performing and more sustainable to produce.
